Terrain Class Reference

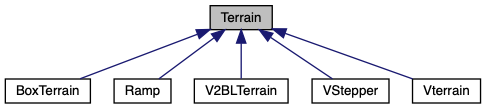

Inheritance diagram for Terrain:

Collaboration diagram for Terrain:

Public Member Functions
	Terrain (b2World *world, sf::RenderWindow &window, config::sTerrain terrainParam, int WINDOW_X_PX, double bodyLength=1)
virtual void	create (b2World *world, sf::RenderWindow &window, config::sTerrain terrainParam, int WINDOW_X_PX, double bodyLength)
virtual void	createBody (b2World *world)
virtual void	drawBody (sf::RenderWindow &window)
virtual e_terrain_type	getType ()
virtual b2Vec2	getTopLeftCorner ()
virtual b2Vec2	getTopRightCorner ()
virtual b2Vec2	getBottom ()
double	getVLength ()
b2Body *	getBody ()
const double	getScale ()

Protected Attributes
b2Body *	m_groundBody
double	m_bodyLength
double	m_M_TO_PX
double	m_width
double	m_height
double	m_runaway
double	m_angle
double	m_posY =2.5
config::sTerrain	m_terrainParam

Detailed Description

Definition at line 25 of file Terrain.h.

Member Function Documentation

create()

void Terrain::create ( b2World *  world, sf::RenderWindow &  window, config::sTerrain  terrainParam, int  WINDOW_X_PX, double  bodyLength  )

virtual

The function create MUST be called if the terrain object has been created via the default constructor (ex when created dynamically with new), otherwise no need to use it

Parameters

world	is a pointer on the Box2D world object
window	is the SFML window
terrainParam	are the terrain parameters (cf Config.h)
WINDOW_X_PX	is the x-size of the window. it is used to calculate the scale to convert from meters to pixels
bodylength	is the size of a robot. it is used to convert the dimension from body length to m

Reimplemented in Ramp, V2BLTerrain, Vterrain, BoxTerrain, and VStepper.

Definition at line 38 of file Terrain.cpp.

createBody()

void Terrain::createBody ( b2World *  world )

virtual

Create the Box2D static body of the terrain

Parameters

world

is a pointer on the Box2D world

Reimplemented in Ramp, V2BLTerrain, Vterrain, BoxTerrain, and VStepper.

Definition at line 57 of file Terrain.cpp.

drawBody()

void Terrain::drawBody ( sf::RenderWindow &  window )

virtual

Draw the body on the window using the SFML library

Parameters

window

is the SFML window where the terrain will be drawn

Reimplemented in Ramp, V2BLTerrain, Vterrain, BoxTerrain, and VStepper.

Definition at line 73 of file Terrain.cpp.

getBody()

b2Body * Terrain::getBody

(

)

Returns

a pointer on the Box2D body of the terrain

Definition at line 84 of file Terrain.cpp.

getBottom()

b2Vec2 Terrain::getBottom ( )

virtual

Returns

the position of the bottom of the V in the box2D world coordinates [m]

Reimplemented in Ramp, V2BLTerrain, and Vterrain.

Definition at line 98 of file Terrain.cpp.

getScale()

const double Terrain::getScale

(

)

As the terrain is the first thing that has to be created in the world, this method allow to obtain a right scale factor to do the conversion between the real dimensions and the simulated ones based on and adapted to the terrain dimensions

Returns

the scale to do the conversion from real dimensions (m) to simulated ones (pixels)

Definition at line 88 of file Terrain.cpp.

Here is the caller graph for this function:

getTopLeftCorner()

b2Vec2 Terrain::getTopLeftCorner ( )

virtual

Returns

the position of the Top left corner of the V in the box2D world coordinates [m]

Reimplemented in Ramp, V2BLTerrain, and Vterrain.

Definition at line 96 of file Terrain.cpp.

Here is the caller graph for this function:

getTopRightCorner()

b2Vec2 Terrain::getTopRightCorner ( )

virtual

Returns

the position of the Top right corner of the V in the box2D world coordinates [m]

Reimplemented in Ramp, V2BLTerrain, and Vterrain.

Definition at line 97 of file Terrain.cpp.

getType()

e_terrain_type Terrain::getType ( )

virtual

Returns

the type of the terrain. Can be DEFAULT, V_TERRAIN, V2BL_TERRAIN, RAMP, BOX or V_STEPPER

Reimplemented in Ramp, V2BLTerrain, Vterrain, BoxTerrain, and VStepper.

Definition at line 92 of file Terrain.cpp.

getVLength()

double Terrain::getVLength ( )

inline

Returns

the length of the V when it makes sense, 0 otherwise [m]

Definition at line 67 of file Terrain.h.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• Terrain.h
• Terrain.cpp
