BoxTerrain Class Reference

Inheritance diagram for BoxTerrain:

Collaboration diagram for BoxTerrain:

Public Member Functions
	BoxTerrain (b2World *world, sf::RenderWindow &window, config::sTerrain terrainParam, int WINDOW_X_PX, double bodyLength=1)
void	create (b2World *world, sf::RenderWindow &window, config::sTerrain terrainParam, int WINDOW_X_PX, double bodyLength=1)
void	createBody (b2World *world)
void	drawBody (sf::RenderWindow &window)
e_terrain_type	getType ()
Public Member Functions inherited from Terrain
	Terrain (b2World *world, sf::RenderWindow &window, config::sTerrain terrainParam, int WINDOW_X_PX, double bodyLength=1)
virtual b2Vec2	getTopLeftCorner ()
virtual b2Vec2	getTopRightCorner ()
virtual b2Vec2	getBottom ()
double	getVLength ()
b2Body *	getBody ()
const double	getScale ()

Additional Inherited Members
Protected Attributes inherited from Terrain
b2Body *	m_groundBody
double	m_bodyLength
double	m_M_TO_PX
double	m_width
double	m_height
double	m_runaway
double	m_angle
double	m_posY =2.5
config::sTerrain	m_terrainParam

Detailed Description

Definition at line 13 of file BoxTerrain.h.

Member Function Documentation

create()

void BoxTerrain::create ( b2World *  world, sf::RenderWindow &  window, config::sTerrain  terrainParam, int  WINDOW_X_PX, double  bodyLength = 1  )

virtual

The function create MUST be called if the terrain object has been created via the default constructor (ex when created dynamically with new), otherwise no need to use it

Parameters

world	is a pointer on the Box2D world object
window	is the SFML window
terrainParam	are the terrain parameters (cf Config.h)
WINDOW_X_PX	is the x-size of the window. it is used to calculate the scale to convert from meters to pixels
bodylength	is the size of a robot. it is used to convert the dimension from body length to m

Reimplemented from Terrain.

Definition at line 26 of file BoxTerrain.cpp.

Here is the caller graph for this function:

createBody()

void BoxTerrain::createBody ( b2World *  world )

virtual

Create the Box2D body for the static object of the scene.

Parameters

m_to_pix,window_x_px,window_y_px	configuration of the window, they are usually defined in the config file.
wall_w_m,wall_h_m	configuration of the walls, they are usually defined in the config file.

Reimplemented from Terrain.

Definition at line 35 of file BoxTerrain.cpp.

Here is the caller graph for this function:

drawBody()

void BoxTerrain::drawBody ( sf::RenderWindow &  window )

virtual

Draw the shapes corresponding to the Box2D body created previously.

Parameters

m_to_pix,window_x_px,window_y_px	configuration of the window, they are usually defined in the config file.
wall_w_m,wall_h_m	configuration of the walls, they are usually defined in the config file.

Reimplemented from Terrain.

Definition at line 68 of file BoxTerrain.cpp.

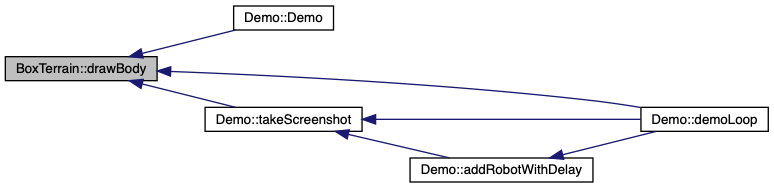

Here is the caller graph for this function:

getType()

e_terrain_type BoxTerrain::getType ( )

virtual

Returns

the type of the terrain. Can be DEFAULT, V_TERRAIN, V2BL_TERRAIN, RAMP, BOX or V_STEPPER

Reimplemented from Terrain.

Definition at line 90 of file BoxTerrain.cpp.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• BoxTerrain.h
• BoxTerrain.cpp
